Alexa Client SDK v0.3

This release of the Alexa Client SDK for C++ provides components for authentication and communications with the Alexa Voice Service (AVS), specifically AuthDelegate, Alexa Communications Library (ACL), Alexa Directive Sequencer Library (ADSL), Activity Focus Manager Library (AFML), and associated APIs.

Overview

The Alexa Client SDK provides a modern C++ (11 or later) interface for AVS that allows developers to add intelligent voice control to connected products. It is modular and abstracted, providing components to handle discrete functionality such as speech capture, audio processing, and communications, with each component exposing APIs that you can use and customize for your integration.

Common Terms

• Interface - A collection of logically grouped messages called directives and events, which correspond to client functionality, such speech recognition, audio playback, and volume control.
• Directives - Messages sent from AVS that instruct your product to take action.
• Events - Messages sent from your product to AVS notifying AVS something has occurred.
• Downchannel - A stream you create in your HTTP/2 connection, which is used to deliver directives from AVS to your product. The downchannel remains open in a half-closed state from the device and open from AVS for the life of the connection. The downchannel is primarily used to send cloud-initiated directives and audio attachments to your product.
• Cloud-initiated Directives - Directives sent from AVS to your product. For example, when a user adjusts device volume from the Amazon Alexa App, a directive is sent to your product without a corresponding voice request.

SDK Architecture

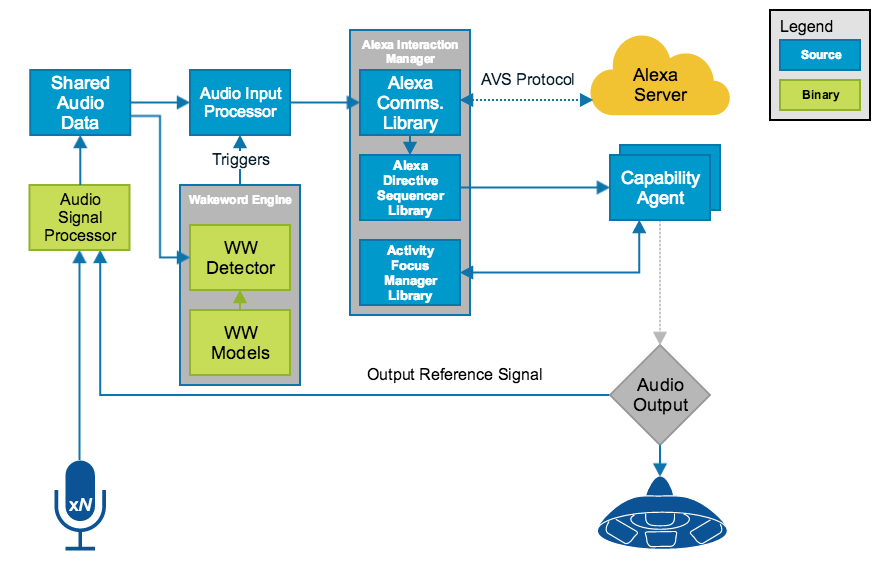

This architecture diagram illustrates the data flows between components that comprise the Alexa Client SDK.

Audio Signal Processor (ASP) - Applies signal processing algorithms to both input and output audio channels. The applied algorithms are designed to produce clean audio data and include, but are not limited to: acoustic echo cancellation (AEC), beam forming (fixed or adaptive), voice activity detection (VAD), dynamic range compression (DRC), and noise reduction (NR). If a multi-microphone array is present, the ASP constructs and outputs a single data stream for the array.

Wake Word Engine (WWE) - Spots wake words in an input stream. It is comprised of two binary interfaces. The first handles wake word spotting (or detection), and the second handles specific wake word models (in this case "Alexa"). Depending on your implementation, the WWE may run on the system on a chip (SOC) or dedicated chip, like a digital signal processor (DSP).

Shared Audio Data - Allows audio to be shared and proxied between the WWE and the AIP. It is a single writer, multiple reader interface, where each reader may be at different locations behind the writer.

Audio Input Processor (AIP) - Manages the captured audio streamed to AVS. Input sources may include: on-product microphones, remote microphones, etc. The Alexa Client SDK expects a single audio input from the AIP.

Alexa Interaction Manager (AIM) - Comprised of three components, the Alexa Communications Library (ACL), the Alexa Directive Sequencer Library (ADSL), and Activity Focus Manager Library (AFML), it handles communications with AVS and message routing to capability agents.

Alexa Communications Library (ACL) - Serves as the main communications channel between a client and AVS. The Performs two key functions:

• Establishes and maintains long-lived persistent connections with AVS. ACL adheres to the messaging specification detailed in Managing an HTTP/2 Conncetion with AVS.
• Provides message sending and receiving capabilities, which includes support JSON-formatted text, and binary audio content. For additional information, see Structuring an HTTP/2 Request to AVS.

Alexa Directive Sequencer Library (ADSL): Manages the order and sequence of directives from AVS, as detailed in the AVS Interaction Model. This component manages the lifecycle of each directive, and informs the Directive Handler (which may or may not be a Capability Agent) to handle the message.

See Appendix C for a diagram of the directive lifecycle.

Activity Focus Manager Library (AFML): Provides centralized management of audiovisual focus for the device. Focus is based on channels, as detailed in the AVS Interaction Model, which are used to govern the prioritization of audiovisual inputs and outputs.

Channels can either be in the foreground or background. At any given time, only one channel can be in the foreground and have focus. If multiple channels are active, you need to respect the following priority order: Dialog > Alerts > Content. When a channel that is in the foreground becomes inactive, the next active channel in the priority order moves into the foreground.

Focus management is not specific to Capability Agents or Directive Handlers, and can be used by non-Alexa related agents as well. This allows all agents using the AFML to have a consistent focus across a device.

Capability Agents: Handle Alexa-driven interactions; specifically directives and events. Each capability agent corresponds to a specific interface exposed by the AVS API. These interfaces include:

• SpeechRecognizer - The interface for speech capture.
• SpeechSynthesizer - The interface for Alexa speech output.
• Alerts - The interface for setting, stopping, and deleting timers and alarms.
• AudioPlayer - The interface for managing and controlling audio playback.
• PlaybackController - The interface for navigating a playback queue via GUI or buttons.
• Speaker - The interface for volume control, including mute and unmute.
• System - The interface for communicating product status/state to AVS.

Minimum Requirements and Dependencies

• C++ 11 or later
• GNU Compiler Collection (GCC) 4.8.5 or later OR Clang 3.3 or later
• CMake 3.0 or later
• libcurl 7.50.2 or later
• nghttp2 1.0 or later
• OpenSSL 1.0.2 or later OR LibreSSL 2.5.0 or later

Obtain LWA Credentials

To access AVS, your product needs to obtain Login with Amazon (LWA) credentials to establish a connection and make requests on behalf of the user. Instructions are available for Remote Authorization and Local Authorization.

Remote Authorization

• Authorizing from a Companion Site
• Authorizing from a Companion App

Local Authorization

• Authorizing from an AVS Product

Test Credentials

For initial testing, instructions are available to quickly obtain a clientId, clientSecret, and refreshToken. This method should not be used as a replacement for Remote Authorization or Local Authorization. For additional information, see Appendix A.

Create the AlexaClientSDKConfig.json file

After you've obtained LWA credentials, you need to create AlexaClientSDKConfig.json:

1. Navigate to the Integration folder.
2. Create a file named AlexaClientSDKConfig.json.
3. Populate the file with the following key/value pairs. Replace all values prefixed with INSERT_YOUR_:

   {
       "authDelegate" : {
           "clientId" : "INSERT_YOUR_CLIENT_ID_HERE",
           "refreshToken" : "INSERT_YOUR_REFRESH_TOKEN_HERE",
           "clientSecret" : "INSERT_YOUR_CLIENT_SECRET_HERE"
       }
   }


After adjusting the configuration, follow the instructions for your OS to create an out-of-source build.

Create an Out-of-Source Build

The following instructions assume that all requirements and dependencies are met and that you have cloned the repository (or saved the tarball locally).

CMake Build Types and Options

The following build types are supported:

• DEBUG - Shows debug logs with -g compiler flag.
• RELEASE - Adds -O2 flag and removes -g flag.
• MINSIZEREL - Compiles with RELEASE flags and optimizations (-Os) for a smaller build size.

To specify a build type, use this command in place of step 4 below (see Build for Generic Linux or Build for macOS): cmake <path-to-source> -DCMAKE_BUILD_TYPE=<build-type>

Include these options to build with the KITT.ai wake word detector:

• -DKITTAI_KEY_WORD_DETECTOR=<ON or OFF> - Specifies whether to build and enable the KITT.ai wake word detector.
• -DKITTAI_KEY_WORD_DETECTOR_LIB_PATH=<path-to-kittai-lib> - The path to the KITT.ai library.
• -DKITTAI_KEY_WORD_DETECTOR_INCLUDE_DIR=<path-to-kittai-include-dir> - The path to the KITT.ai include directory.

This is an example cmake command:

cmake <path-to-source> -DKITTAI_KEY_WORD_DETECTOR=ON -DKITTAI_KEY_WORD_DETECTOR_LIB_PATH=.../snowboy-1.2.0/lib/libsnowboy-detect.a -DKITTAI_KEY_WORD_DETECTOR_INCLUDE_DIR=.../snowboy-1.2.0/include

NOTE: A matrix calculation library, known as BLAS, is required to use KITT.ai. The following are sample commands to install this library:

• Generic Linux - apt-get install libatlas-base-dev
• macOS - brew install homebrew/science/openblas

Note: To list all available CMake options, use the following command: -LH.

Build for Generic Linux

To create an out-of-source build for Linux:

1. Clone the repository (or download and extract the tarball).
2. Create a build directory out-of-source. Important: The directory cannot be a subdirectory of the source folder.
3. cd into your build directory.
4. From your build directory, run cmake on the source directory to generate make files for the SDK: cmake <path-to-source-code>.
5. From the build directory, run make to build the SDK.

Build for macOS

Building for macOS requires some additional setup. Specifically, you need to ensure that you are running the latest version of cURL and that cURL is linked to nghttp2 (the default installation does not).

To recompile cURL, follow these instructions:

1. Install Homebrew, if you haven't done so already.
2. Install cURL with HTTP2 support: brew install curl --with-nghttp2
3. Force cURL to explicitly link to the updated binary: brew link curl --force
4. Close and reopen terminal.
5. Confirm version and source with this command: brew info curl

To create an out-of-source build for macOS:

1. Clone the repository (or download and extract the tarball).
2. Create a build directory out-of-source. Important: The directory cannot be a subdirectory of the source folder.
3. cd into your build directory.
4. From your build directory, run cmake on the source directory to generate make files for the SDK: cmake <path-to-source-code>.
5. From the build directory, run make to build the SDK.

Run Unit Tests

Note: In order to run unit tests for the KITT.ai wake word detector, the following files must be downloaded from GitHub and placed in KWD/inputs/KittAiModels:

• common.res
• alexa.umdl - It's important that you download the alexa.umdl in [resources/alexa/alexa-avs-sample-app](https://github.com/Kitt-AI/snowboy/tree/master/resources/alexa/alexa-avs-sample-app) for the KITT.ai unit tests to run properly.

Unit tests for the Alexa Client SDK use the Google Test framework. Ensure that the Google Test is installed, then run the following command: make all test

Ensure that all tests are passed before you begin integration testing.

Run Integration Tests

Integration tests ensure that your build can make a request and receive a response from AVS. All requests to AVS require auth credentials.

Important: Integration tests for v0.3 reference an AlexaClientSDKConfig.json file, which you must create. See the Create the AlexaClientSDKConfig.json file section (above), if you have not already done this.

Note: If the project was built with the KITT.ai wake word detector, the following files must be downloaded from GitHub and placed in Integration/inputs/KittAiModels for the integration tests to run properly:

• common.res
• alexa.umdl - It's important that you download the alexa.umdl in [resources/alexa/alexa-avs-sample-app](https://github.com/Kitt-AI/snowboy/tree/master/resources/alexa/alexa-avs-sample-app) for the KITT.ai integration tests to run properly.

To exercise the integration tests run this command: make all integration

Alexa Client SDK API Documentation

To build the Alexa Client SDK API documentation, run this command from your build directory: make doc.

Resources and Guides

• Step-by-step instructions to optimize libcurl for size in *nix systems.
• Step-by-step instructions to build libcurl with mbed TLS and nghttp2 for *nix systems.

Appendix A: Obtain Test Credentials

The output of these steps are a Client ID, Client Secret, and Refresh Token, which are required to use the AuthDelegate.

Step 1: Register a Product

These instructions walk through registering a product. If you've already registerd a product, you can skip ahead to Step 2.

1. Login to the Amazon Developer Portal. If you don't have an account, create one now.
2. Navigate to the Alexa Dashboard. Select Get Started under Alexa Voice Service. Then click Register a Product Type and select Device.
3. Follow the instructions provided by the registration wizard.

Make note of the following values. You'll need these later:

• Device Type ID (also called ProductID)
• Client ID, and
• Client Secret
• Allowed Return URL

Important: Make sure your Allowed Origins and Allowed Return URLs are set under Security Profile > Web Settings. For example:

• Allowed Origins: https://localhost:3000
• Allowed Return URLs: https://localhost:3000/authresponse

Step 2: Make an Authorization Code Grant Request

In this step, we'll build a URL to exchange your Client ID, Device Type ID and Allowed Return URL for an Authorization Code.

1. Use this URL as your template:

   https://www.amazon.com/ap/oa?client_id=<<Client_ID>>&scope=alexa%3Aall&scope_data=%7B%22alexa%3Aall%22%3A%7B%22productID%22%3A%22<<Device_Type_ID>>%22,%22productInstanceAttributes%22%3A%7B%22deviceSerialNumber%22%3A%22<<Device_Serial_Number>>%22%7D%7D%7D&response_type=code&redirect_uri=<<Allowed_Return_URL>>


2. Replace <<Client_ID>>, <<Device_Type_ID>>, and <<Allowed_Return_URL>> with the values you recorded in Step 1. Note: Some of these values may need to be URL encoded. If you don't have a tool, you can use a tool like http://www.urlencoder.org.
3. Replace <<Device_Serial_Number>> with any alphanumeric combination (or an actual product serial number).
4. Paste the URL you've created into your favorite browser.
5. When prompted, login with your Amazon Developer Account. Note: You may be taken to a confirmation page. If you are, click Confirm.
6. This will redirect you to your Allowed Return URL with a query parameter specifying a code value. Note: The URL should look like this <<Allowed_Return_URL>>?code=<<code>>&scope=alexa%3Aall>>
7. Copy the code value. You'll need this to obtain a refresh token.

Step 3: Obtain a Refresh Token

In this step we'll make a POST request to obtain a Refresh Token. Ensure that you have cURL installed (or an alternative, such as wget).

1. Use this curl request as your template:

   curl -X POST --data "grant_type=authorization_code&code=<<code>>&client_id=<<Client_id>>&client_secret=<<Client_secret>>&redirect_uri=<<Allowed_Return_URL>>" https://api.amazon.com/auth/o2/token


2. Replace <<code>>, <<Client_ID>>, <<Client_Secret>>, and <<Allowed_Return_URL>> with the values you recorded earlier. Note: Some of these values may need to be URL encoded. If you don't have a tool, you can use a tool like http://www.urlencoder.org.
3. If successful, a JSON string will print to your console. Locate refresh_token and record the value.

Appendix B: Memory Profile

This appendix provides the memory profiles for various modules of the Alexa Client SDK. The numbers were observed running integration tests on a machine running Ubuntu 16.04.2 LTS.

Module	Source Code Size (Bytes)	Library Size RELEASE Build (libxxx.so) (Bytes)	Library Size MINSIZEREL Build (libxxx.so) (Bytes)
ACL	300 KB	245 KB	227 KB
ADSL	188 KB	180 KB	169 KB
AFML	100 KB	114 KB	109 KB

Runtime Memory

Unique size set (USS) and proportional size set (PSS) were measured by SMEM while integration tests were run.

Runtime Memory	Max USS (Bytes)	Max PSS (Bytes)
ACL	22 MB	23 MB
ADSL + ACL	26 MB	27 MB

Definitions

• USS: The amount of memory that is private to the process and not shared with any other processes.
• PSS: The amount of memory shared with other processes; divided by the number of processes sharing each page.

Appendix C: Directive Lifecycle Diagram

Appendix D: Runtime Configuration of path to CA Certificates

By default libcurl is built with paths to a CA bundle and a directory containing CA certificates. You can direct the Alexa Client SDK to configure libcurl to use an additional path to directories containing CA certificates via the CURLOPT_CAPATH setting. This is done by adding a "libcurlUtils/CURLOPT_CAPATH" entry to the AlexaClientSDKConfig.json file. Here is an example:

{
    "authDelegate" : {
        "clientId" : "INSERT_YOUR_CLIENT_ID_HERE",
        "refreshToken" : "INSERT_YOUR_REFRESH_TOKEN_HERE",
        "clientSecret" : "INSERT_YOUR_CLIENT_SECRET_HERE"
    },
    "libcurlUtils" : {
        "CURLOPT_CAPATH" : "INSERT_YOUR_CA_CERTIFICATE_PATH_HERE"
    }
}

Note If you want to assure that libcurl is only using CA certificates from this path you may need to reconfigure libcurl with the --without-ca-bundle and --without-ca-path options and rebuild it to suppress the default paths. See The libcurl documention for more information.

Release Notes

v0.3 of the Alexa Client SDK includes components for authentication, communications, message orchestration, and focus management. These include AuthDelegate, ACL, ADSL, AFML, AIP, SDS, and associated APIs.

v0.3 released 5/17/2017:

• Added the CapabilityAgent base class that is used to build capability agent implementations.
• Added the ContextManager class that allows multiple Capability Agents to store and access state. These events include context, which is used to communicate the state of each capability agent to AVS:
  • Recognize
  • PlayCommandIssued
  • PauseCommandIssued
  • NextCommandIssued
  • PreviousCommandIssued
  • SynchronizeState
  • ExceptionEncountered
• Implemented the SharedDataStream (SDS) to asynchronously communicate data between a local reader and writer.
• Added AudioInputProcessor (AIP), an implementation of a SpeechRecognizer capability agent.
• Added the WakeWord Detector (WWD), which recognizes keywords in audio streams. v0.3 implements a wrapper for KITT.ai.
• Added a new implementation of AttachmentManager and associated classes for use with SDS.
• Updated the ACL to support asynchronously sending audio to AVS.

v0.2.1 released 5/3/2017:

• Replaced the configuration file AuthDelegate.config with AlexaClientSDKConfig.json.
• Added the ability to specify a CURLOPT_CAPATH value to be used when libcurl is used by ACL and AuthDelegate. See Appendix D for details.
• Changes to ADSL interfaces: The v0.2 interface for registering directive handlers (DirectiveSequencer::setDirectiveHandlers()) was problematic because it canceled the ongoing processing of directives and dropped further directives until it completed. The revised API makes the operation immediate without canceling or dropping any handling. However, it does create the possibility that DirectiveHandlerInterface methods preHandleDirective() and handleDirective() may be called on different handlers for the same directive.
  • DirectiveSequencerInterface::setDirectiveHandlers() was replaced by addDirectiveHandlers() and removeDirectiveHandlers().
  • DirectiveHandlerInterface::shutdown() was replaced with onDeregistered().
  • DirectiveHandlerInterface::preHandleDirective() now takes a std::unique_ptr instead of a std::shared_ptr to DirectiveHandlerResultInterface.
  • DirectiveHandlerInterface::handleDirective() now returns a bool indicating if the handler recognizes the messageId.
• Bug fixes:
  • ACL and AuthDelegate now require TLSv1.2.
  • onDirective() now sends ExceptionEncountered for unhandled directives.
  • DirectiveSequencer::shutdown() no longer sends ExceptionEncountered() for queued directives.

v0.2 updated 3/27/2017:

• Added memory profiling for ACL and ADSL. See Appendix B.
• Added command to build API documentation.

v0.2 released 3/9/2017:

• Alexa Client SDK v0.2 released.
• Architecture diagram has been updated to include the ADSL and AMFL.
• CMake build types and options have been updated.
• New documentation for libcurl optimization included.

v0.1 released 2/10/2017:

• Alexa Client SDK v0.1 released.
