Atom's View System

SpacePen Basics

Atom's view system is built around the SpacePen view framework. SpacePen view objects inherit from the jQuery prototype, and wrap DOM nodes

View objects are actually jQuery wrappers around DOM fragments, supporting all the typical jQuery traversal and manipulation methods. In addition, view objects have methods that are view-specific. For example, you could call both general and view-specific on the global atom.workspaceView instance:

atom.workspaceView.find('.editor.active') # standard jQuery method
atom.workspaceView.getActiveEditor()      # view-specific method

If you retrieve a jQuery wrapper for an element associated with a view, use the .view() method to retrieve the element's view object:

# this is a plain jQuery object; you can't call view-specific methods
editorElement = atom.workspaceView.find('.editor.active')

# get the view object by calling `.view()` to call view-specific methods
editorView = editorElement.view()
editorView.setCursorBufferPosition([1, 2])

Refer to the SpacePen documentation for more details.

WorkspaceView

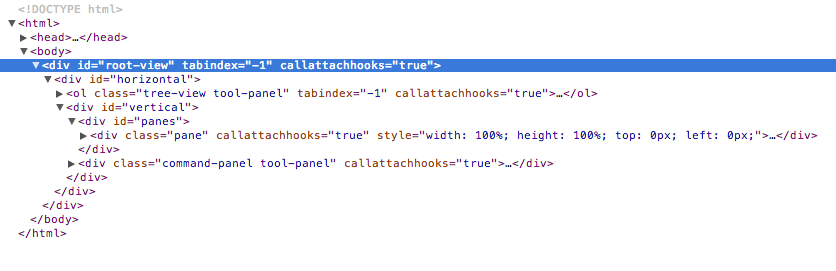

The root of Atom's view hierarchy is a global called atom.workspaceView, which is a singleton instance of the WorkspaceView view class. The root view fills the entire window, and contains every other view. If you open Atom's inspector with alt-cmd-i, you can see the internal structure of WorkspaceView:

Panes

The WorkspaceView contains prependToBottom/Top/Left/Right and appendToBottom/Top/Left/Right methods, which are used to add Tool Panels. Tool panels are elements that take up screen real estate not devoted to text editing. In the example above, the TreeView is appended to the left, and the CommandPanel is appended to the top.

# place a view to the left of the panes
atom.workspaceView.appendToLeft(new MyView)

# place a view below the panes
atom.workspaceView.appendToBottom(new MyOtherView)
