How the template works

Introduction

This repo was made to help me build node applications faster, as it is something that I do often and that I don't like to configure everytime. With that said, it includes file uploads, authentication using passport and a basic create and read endpoint for better undertanding how everything is laid out. The base configuration comes with MySQL and Redis installed, but this can be adjusted at anytime in the folder /src/databases/ in the constructor of the class.

Instalation and usage

Prerequisite: node mysql redis

Simple enough, clone the repo into your computer

git clone [email protected]:rodrigo0345/node_template.git

Install all the dependencies

npm i

And the basic of it is done. Because we are using redis and mysql, you will also need to install its respective clients and spin them up or you can use docker-compose to spin up everything for you!

Spin up using Docker

Windows

docker compose up --build

Linux

docker-compose up --build

And once you are done use the command bellow to quit all the containers:

Windows

docker compose down

Linux

docker-compose down

For additional configuration, don't forget to change the name of the .env.example to .env and mess around with the values for your specific use case.

File structure

• .devcontainer # Optional and used only for Visual Studio Code
• .vscode # Optional and used only for Visual Studio Code
• public # here are all the things that can be accessed by anyone, simply go to <running_uri>/public/
• src
  • common # contains initial configs
  • controllers
    • auth
    • image
    • posts
  • databases
  • routes
  • types # helps with defining types that are gonna be used throughout the app and/or in the database
  • utils # random stuff that might be usefull

Controllers and Routes

These two are heavily connected between one another because the route simply specifies the routes, the controllers define what is gonna be executed in said route.

For example

routes contains this files:

• auth.ts
• image.ts
• posts.ts

inside the file (e.g auth.ts) we have:

authRouter.post('/register', postRegister);

authRouter.post('/login', passport.authenticate('local'), (req, res) => {
  res.json(ApiSuccess('Logged in'));
});

authRouter.get('/user', protectRoute, getUser);

thus, controllers are gonna contain:

• auth (directory)
  • getUser.ts # the acctual implementation of getUser specified above
  • postRegister.ts
• image (directory)
• posts (directory)

Types

This folder is meant to declare all the types used throught the aplication that are also stored on the database. There is one special file called db.ts that is responsible for creating a table for each type used there.

❗ This is very important

If you see this error message while initiating your app:

File at @types/<filename> does not exist

It indicates that:

{
    filename: 'user.ts', <----
    name: 'users',
    createTable: `
            CREATE TABLE IF NOT EXISTS users (
                id INT NOT NULL AUTO_INCREMENT UNIQUE,
                name VARCHAR(255) NOT NULL,
                role VARCHAR(10) NOT NULL,
                email VARCHAR(255) NOT NULL UNIQUE,
                password VARCHAR(255) NOT NULL,
                deleted BOOLEAN NOT NULL DEFAULT FALSE,
                created_at DATETIME NOT NULL DEFAULT CURRENT_TIMESTAMP,
                updated_at DATETIME NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
                PRIMARY KEY (id)
            );`,
    insertTable: `
            INSERT INTO users (name, role, email, password)
            VALUES (?, ?, ?, ?);`,
  },

The file called what you specified in .filename does not exist inside the folder types!

Authentication

Access the user data

To access the user data simply use req.user in the request and it is as simple as that, for more information go look at the documentation of passport.js

Dependencies

• typescript
• cors
• morgan
• express
• mysql2
• bcrypt
• express-session
• multer
• passport
• express-rate-limit
• zod
• redis
• sharp
• ts-reset

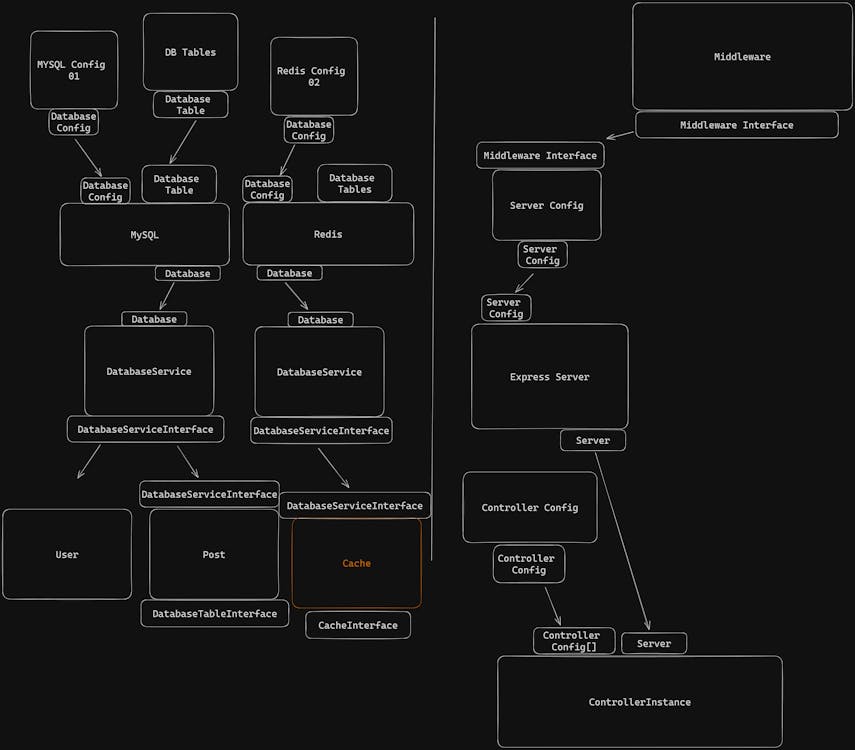

Ilustration of the Dependency Injection Arquitecture used
