297 changes: 297 additions & 0 deletions 02-PyTorch/14-GoogleNet-Inception-Module.ipynb
View file
Original file line number Diff line number Diff line change
@@ -0,0 +1,297 @@
{
"cells": [
{
"cell_type": "markdown",
"id": "2ed64781",
"metadata": {},
"source": [
"## GoogLeNet의 Inception Module 구현\n",
"\n",
"Going Deeper with Convolutions(2015) Inception 모듈에 대한 내용입니다. 해당 논문에서는 Inception Module이라는 새로운 neural network architecture 를 공개하였습니다. 논문의 제목과 같이 Going Deeper 즉 더욱 깊은 신경망 모델을 dimension reduction이 적용된 Inception Module로 가능케 하였는데, 이때 1x1 Convolution을 적극 활용하였습니다.\n",
"\n",
"이때 활용한 1x1 Convolution이 어떤 역할을 하였는지 살펴보도록 하겠습니다.\n",
"\n",
"- 논문 링크 [**(링크)**](https://arxiv.org/pdf/1409.4842v1.pdf)"
]
},
{
"cell_type": "code",
"execution_count": 1,
"id": "25cb458b",
"metadata": {},
"outputs": [],
"source": [
"import torch\n",
"import torch.nn as nn\n",
"import torchsummary"
]
},
{
"cell_type": "markdown",
"id": "eb99f57d",
"metadata": {},
"source": [
"> GoogLeNet Inception Module naive version (Version 1)\n",
"\n",
"![](https://miro.medium.com/max/720/1*wverTCLSTVNDpyRhlGVwyw.webp)"
]
},
{
"cell_type": "code",
"execution_count": 2,
"id": "de629de7",
"metadata": {},
"outputs": [],
"source": [
"class BaseConv2D(nn.Module):\n",
" def __init__(self, in_channels, out_channels, **kwargs):\n",
" super(BaseConv2D, self).__init__()\n",
" self.conv = nn.Conv2d(in_channels=in_channels, out_channels=out_channels, **kwargs)\n",
" self.relu = nn.ReLU(inplace=True)\n",
" \n",
" def forward(self, x):\n",
" return self.relu(self.conv(x))\n",
"\n",
" \n",
"class InceptionModuleV1(nn.Module):\n",
" def __init__(self, in_channels, out_1x1, out_3x3, out_5x5, pool):\n",
" super(InceptionModuleV1, self).__init__()\n",
" self.conv1x1 = BaseConv2D(in_channels, out_1x1, kernel_size=1)\n",
" self.conv3x3 = BaseConv2D(in_channels, out_3x3, kernel_size=3, padding='same')\n",
" self.conv5x5 = BaseConv2D(in_channels, out_5x5, kernel_size=5, padding='same')\n",
" self.pool = nn.Sequential(\n",
" nn.MaxPool2d(kernel_size=3, stride=1, padding=1), \n",
" BaseConv2D(in_channels, pool, kernel_size=1, padding='same')\n",
" )\n",
" \n",
" def forward(self, x):\n",
" x1 = self.conv1x1(x)\n",
" x2 = self.conv3x3(x)\n",
" x3 = self.conv5x5(x)\n",
" x4 = self.pool(x)\n",
" return torch.cat([x1, x2, x3, x4], 1)"
]
},
{
"cell_type": "code",
"execution_count": 3,
"id": "bcb38488",
"metadata": {},
"outputs": [],
"source": [
"inception_module_V1 = InceptionModuleV1(192, 64, 128, 32, 32)"
]
},
{
"cell_type": "code",
"execution_count": 6,
"id": "3c26aeb7",
"metadata": {},
"outputs": [
{
"name": "stdout",
"output_type": "stream",
"text": [
"----------------------------------------------------------------\n",
" Layer (type) Output Shape Param #\n",
"================================================================\n",
" Conv2d-1 [-1, 64, 28, 28] 12,352\n",
" ReLU-2 [-1, 64, 28, 28] 0\n",
" BaseConv2D-3 [-1, 64, 28, 28] 0\n",
" Conv2d-4 [-1, 128, 28, 28] 221,312\n",
" ReLU-5 [-1, 128, 28, 28] 0\n",
" BaseConv2D-6 [-1, 128, 28, 28] 0\n",
" Conv2d-7 [-1, 32, 28, 28] 153,632\n",
" ReLU-8 [-1, 32, 28, 28] 0\n",
" BaseConv2D-9 [-1, 32, 28, 28] 0\n",
" MaxPool2d-10 [-1, 192, 28, 28] 0\n",
" Conv2d-11 [-1, 32, 28, 28] 6,176\n",
" ReLU-12 [-1, 32, 28, 28] 0\n",
" BaseConv2D-13 [-1, 32, 28, 28] 0\n",
"================================================================\n",
"Total params: 393,472\n",
"Trainable params: 393,472\n",
"Non-trainable params: 0\n",
"----------------------------------------------------------------\n",
"Input size (MB): 0.57\n",
"Forward/backward pass size (MB): 5.74\n",
"Params size (MB): 1.50\n",
"Estimated Total Size (MB): 7.82\n",
"----------------------------------------------------------------\n"
]
}
],
"source": [
"torchsummary.summary(inception_module_V1, input_size=(192, 28, 28), device='cpu')"
]
},
{
"cell_type": "markdown",
"id": "fa465dd9",
"metadata": {},
"source": [

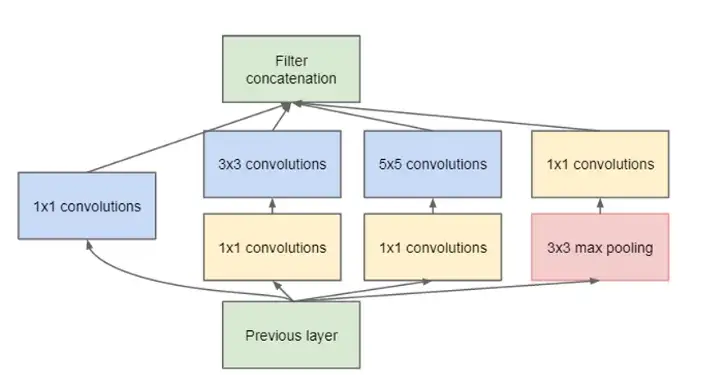

"> Inception Module with dimension reductions (Version 2)\n",
"\n",
"![](https://miro.medium.com/max/720/1*SdbkFi2JB-Tjri7LVOMkWA.webp)\n",
"\n",
"출처: https://valentinaalto.medium.com/understanding-the-inception-module-in-googlenet-2e1b7c406106"
]
},
{
"cell_type": "code",
"execution_count": 4,
"id": "e787e354",
"metadata": {},
"outputs": [],
"source": [
"class InceptionModuleV2(nn.Module):\n",
" def __init__(self, in_channels, out_1x1, out_3x3_reduce, out_3x3, out_5x5_reduce, out_5x5, pool):\n",
" super(InceptionModuleV2, self).__init__()\n",
" self.conv1x1 = BaseConv2D(in_channels, out_1x1, kernel_size=1)\n",
" \n",
" self.conv3x3 = nn.Sequential(\n",
" BaseConv2D(in_channels, out_3x3_reduce, kernel_size=1),\n",
" BaseConv2D(out_3x3_reduce, out_3x3, kernel_size=3, padding='same')\n",
" )\n",
" self.conv5x5 = nn.Sequential(\n",
" BaseConv2D(in_channels, out_5x5_reduce, kernel_size=1),\n",
" BaseConv2D(out_5x5_reduce, out_5x5, kernel_size=5, padding='same')\n",
" )\n",
" \n",
" self.pool = nn.Sequential(\n",
" nn.MaxPool2d(kernel_size=3, stride=1, padding=1), \n",
" BaseConv2D(in_channels, pool, kernel_size=1, padding='same')\n",
" )\n",
" \n",
" def forward(self, x):\n",
" x1 = self.conv1x1(x)\n",
" x2 = self.conv3x3(x)\n",
" x3 = self.conv5x5(x)\n",
" x4 = self.pool(x)\n",
" return torch.cat([x1, x2, x3, x4], 1)"
]
},
{
"cell_type": "code",
"execution_count": 5,
"id": "76df8628",
"metadata": {},
"outputs": [],
"source": [
"inception_module_V2 = InceptionModuleV2(192, 64, 96, 128, 16, 32, 32)"
]
},
{
"cell_type": "code",
"execution_count": 7,
"id": "90182879",
"metadata": {},
"outputs": [
{
"name": "stdout",
"output_type": "stream",
"text": [
"----------------------------------------------------------------\n",
" Layer (type) Output Shape Param #\n",
"================================================================\n",
" Conv2d-1 [-1, 64, 28, 28] 12,352\n",
" ReLU-2 [-1, 64, 28, 28] 0\n",
" BaseConv2D-3 [-1, 64, 28, 28] 0\n",
" Conv2d-4 [-1, 96, 28, 28] 18,528\n",
" ReLU-5 [-1, 96, 28, 28] 0\n",
" BaseConv2D-6 [-1, 96, 28, 28] 0\n",
" Conv2d-7 [-1, 128, 28, 28] 110,720\n",
" ReLU-8 [-1, 128, 28, 28] 0\n",
" BaseConv2D-9 [-1, 128, 28, 28] 0\n",
" Conv2d-10 [-1, 16, 28, 28] 3,088\n",
" ReLU-11 [-1, 16, 28, 28] 0\n",
" BaseConv2D-12 [-1, 16, 28, 28] 0\n",
" Conv2d-13 [-1, 32, 28, 28] 12,832\n",
" ReLU-14 [-1, 32, 28, 28] 0\n",
" BaseConv2D-15 [-1, 32, 28, 28] 0\n",
" MaxPool2d-16 [-1, 192, 28, 28] 0\n",
" Conv2d-17 [-1, 32, 28, 28] 6,176\n",
" ReLU-18 [-1, 32, 28, 28] 0\n",
" BaseConv2D-19 [-1, 32, 28, 28] 0\n",
"================================================================\n",
"Total params: 163,696\n",
"Trainable params: 163,696\n",
"Non-trainable params: 0\n",
"----------------------------------------------------------------\n",
"Input size (MB): 0.57\n",
"Forward/backward pass size (MB): 7.75\n",
"Params size (MB): 0.62\n",
"Estimated Total Size (MB): 8.95\n",
"----------------------------------------------------------------\n"
]
}
],
"source": [
"torchsummary.summary(inception_module_V2, input_size=(192, 28, 28), device='cpu')"
]
},
{
"cell_type": "code",
"execution_count": 8,
"id": "30826d29",
"metadata": {},
"outputs": [],
"source": [
"dummy_input = torch.randn(size=(1, 192, 28, 28))"
]
},
{
"cell_type": "code",
"execution_count": 9,
"id": "5dfe3cf8",
"metadata": {},
"outputs": [],
"source": [
"y1 = inception_module_V1(dummy_input)\n",
"y2 = inception_module_V2(dummy_input)"
]
},
{
"cell_type": "code",
"execution_count": 10,
"id": "ac2fcec2",
"metadata": {},
"outputs": [
{
"data": {
"text/plain": [
"(torch.Size([1, 256, 28, 28]), torch.Size([1, 256, 28, 28]))"
]
},
"execution_count": 10,
"metadata": {},
"output_type": "execute_result"
}
],
"source": [
"y1.shape, y2.shape"
]
}
],
