Quimb Tensor Network Simulators (quantumlib#3129)
Browse files Browse the repository at this point in the history
[Quimb](https://quimb.readthedocs.io/en/latest/index.html) is a nice tensor network package. This set of utilities (in `contrib` because there are features missing) allows you to turn cirq Circuits into quimb tensor networks with some benefits.

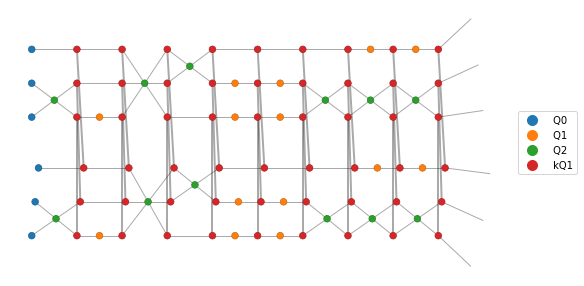

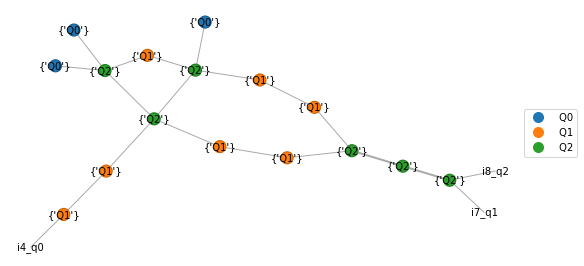

![image](https://user-images.githubusercontent.com/4967059/87093421-05b1b480-c1f2-11ea-8804-2f78b7cb3620.png)

![image](https://user-images.githubusercontent.com/4967059/87093437-0ba79580-c1f2-11ea-87c0-d7e6617df789.png)


The particular use cases I've explored explicitly is

1. For shallow, low degree circuits you can compute the value of low weight observables on a very high number of qubits (example provided in "Contract a Grid Circuit" notebook)

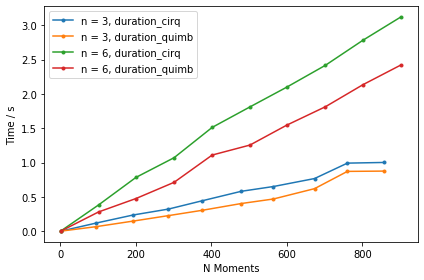

2. For low-qubit number, deep, noisy circuits it is faster than the cirq density matrix simulator

![image](https://user-images.githubusercontent.com/4967059/87093490-22e68300-c1f2-11ea-8953-f8f5f59abac3.png)


## Features

 - Turn circuits into tensor networks representing state vector or unitary
 - Drop-in replacements for `cirq.final_state_vector` and `cirq.unitary` that use tensor contraction under the hood
 - Utilities for contracting circuits of the form <0 | U^dag A U |0> for PauliString `A`.
 - Some related functionality for building circuits on a grid and simplifying some of the operations with low weight observables
 - Circuit-like positioning of tensors in tensor drawings for density matrix networks

## Limitations

 - Code duplication between state vector and density transforms
 - Initial state must be |0>
 - No circuit-like positioning of tensors in state-vector networks
 - No expectation values with density matrices
 - Doesn't follow the simulator and sampler APIs
